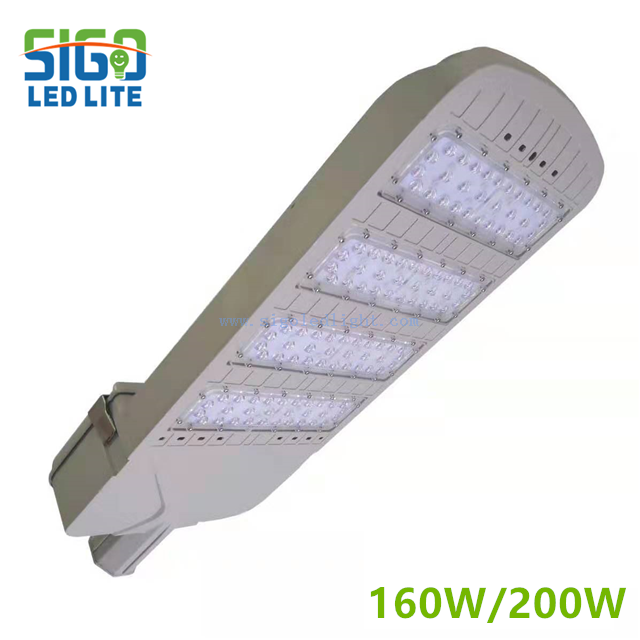

SG-GMERL-160W/200W
SIGOLED
l Parameters:
Input Voltage: 100-277VAC/50-60HZ
LED Chips: Lumileds/Epistar/San’an 3030 SMD
LED Efficacy: 140-160lm/W
CCT: Daylight/Coolwhite/Warmwhite
Driver: Meanwell / Sosen / Done
l Features:
- Integrated die casting modular housing design with IP66 waterproof ability.
- Optimized light photometric bat-wing light distribution with high transmittance lens modular.
- IEC60598-2-3 certificated, suitable for high quality requirements projects.
- Can work with angle-adjustable adaptor.
Model No. | Wattage | Light Efficacy | Power Factor | Length | Width | Depth | Hole Diameter | Warranty | LED |
GMERL80W | 80W | 130lm/W | >0.95 | 550mm | 285mm | 85mm | 60mm | 2-3Years |
3030 SMD |
GMERL100W | 100W | ||||||||
GMERL120W | 120W | 640mm | 285mm | 85mm | |||||
GMERL150W | 150W | ||||||||
GMERL120W | 120W | 740mm | 285mm | 85mm | |||||
GMERL160W | 160W | ||||||||
GMERL200W | 200W |
l Parameters:
Input Voltage: 100-277VAC/50-60HZ
LED Chips: Lumileds/Epistar/San’an 3030 SMD
LED Efficacy: 140-160lm/W
CCT: Daylight/Coolwhite/Warmwhite
Driver: Meanwell / Sosen / Done
l Features:
- Integrated die casting modular housing design with IP66 waterproof ability.
- Optimized light photometric bat-wing light distribution with high transmittance lens modular.
- IEC60598-2-3 certificated, suitable for high quality requirements projects.
- Can work with angle-adjustable adaptor.
Model No. | Wattage | Light Efficacy | Power Factor | Length | Width | Depth | Hole Diameter | Warranty | LED |
GMERL80W | 80W | 130lm/W | >0.95 | 550mm | 285mm | 85mm | 60mm | 2-3Years |
3030 SMD |
GMERL100W | 100W | ||||||||
GMERL120W | 120W | 640mm | 285mm | 85mm | |||||
GMERL150W | 150W | ||||||||
GMERL120W | 120W | 740mm | 285mm | 85mm | |||||
GMERL160W | 160W | ||||||||
GMERL200W | 200W |
